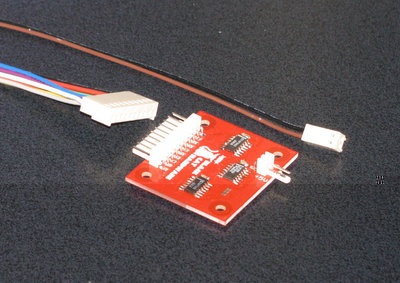

This year I reworked the design for SMD part use and it's ready for testing:
As the ST's clock tree needs to be revised some tracks on the ST's mainboard need to be cut! You need a 16MHz CPU and you probably need to replace the RAM as this project needs 70ns DRAM. So if you haven't done it yet it's a good idea to upgrade to 4MB with a PS/2 SIMM for example.

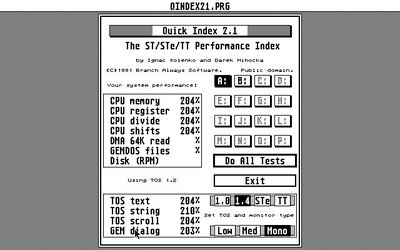

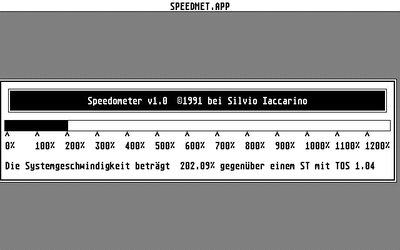

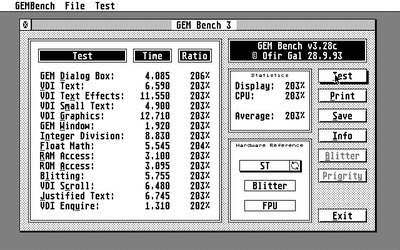

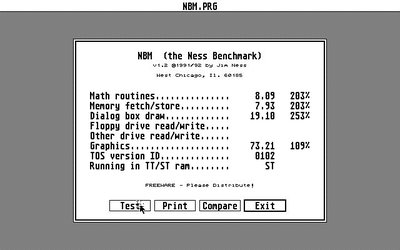

This project is definitely NOT for hardware rookies. The original design was created by Stefan Nitschke.
